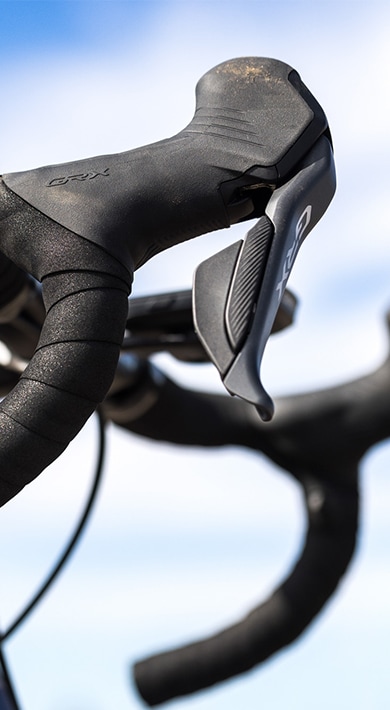

SHIMANO Hydraulic Disc Brakes for Road & Gravel: Power, Control, Reliability

SHIMANO Hydraulic Disc Brakes for Road & Gravel: Power, Control, Reliability

SHIMANO Hydraulic Disc Brakes for Road & Gravel: Power, Control, Reliability

SHIMANO Hydraulic Disc Brakes for Road & Gravel: Power, Control, Reliability

In this article:

  • Learn how SHIMANO hydraulic disc brakes work and how they deliver smooth, powerful, and consistent stopping.
  • Understand the advanced technologies behind SHIMANO braking, including ICE Tech rotors, pads, mineral oil, and wider pad clearance that improve heat management and reliability.
  • Discover tips for tailoring and maintaining your brakes, from choosing rotor sizes and pad types to easy bleeding and lever adjustments for the perfect ride feel.

For more than 50 years, SHIMANO has refined the art and science of braking. What began in off-road applications on mountain bikes has evolved into precise, powerful, and reliable hydraulic disc brake systems for road, gravel, and cyclocross bikes.

SHIMANO’s recipe for success comes down to:

  • Superior engineering built on decades of R&D
  • Precision manufacturing for unmatched consistency
  • Advanced heat management to deliver dependable braking in all conditions

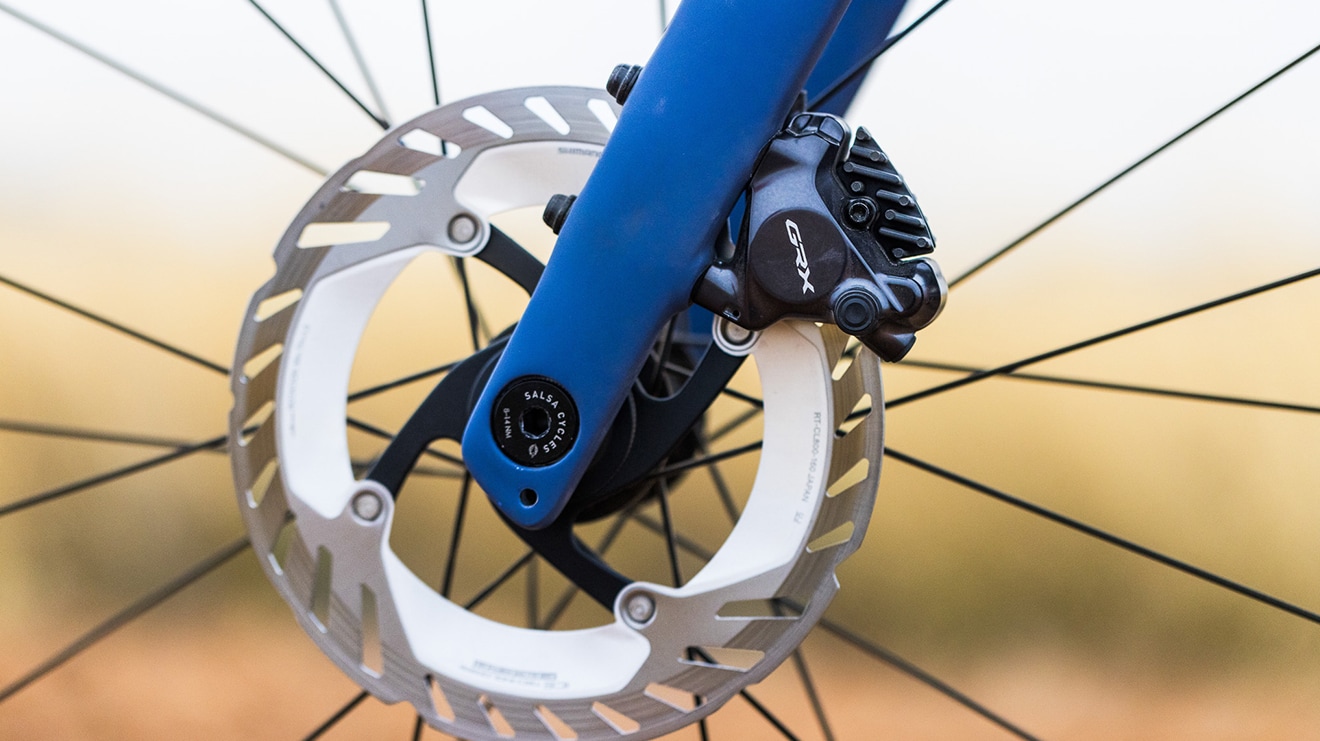

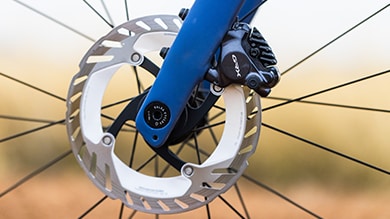

SHIMANO GRX brake calipers for reliable braking on gravel bike
SHIMANO GRX brake calipers for reliable braking on gravel bike

The result of years of development and testing is stronger stopping power, smoother modulation, and consistent performance, no matter where or how you ride.

How Hydraulic Disc Brakes Work

At its core, braking is the process of turning kinetic energy (your forward motion) into heat energy. On your bike, this transformation happens at the rotor-pad interface inside the brake caliper.

Here’s the SHIMANO difference:

  • Squeeze the lever – Mineral oil fluid transfers force through the line.
  • Pistons push pads against the rotor – Friction slows the wheel.
  • SHIMANO’s precision calipers, rotors, and pads shed heat quickly – Consistent, reliable stopping power, ride after ride.
Group of bike riders riding road bikes down a road with Shimano
Group of bike riders riding road bikes down a road with Shimano

Because heat is the most significant factor in brake performance, SHIMANO designs every component (rotors, pads, calipers, and fluid) to manage heat efficiently.

Tackling Heat: SHIMANO’s Braking Advantage

Long descents, aggressive braking, or muddy cyclocross laps all generate heat. Left unmanaged, heat causes brake fade, rotor warping, and noisy squealing. SHIMANO combats this with an arsenal of proven technologies:

ICE TECHNOLOGIES Rotors and Pads

  • Three-layer rotor construction (stainless steel-aluminum-stainless steel) dissipates heat efficiently.
  • Radiator fin pads pull heat away from the braking surface.
  • Together, they reduce rotor temperature by up to 100°C (180°F), extending pad life and maintaining consistent performance.

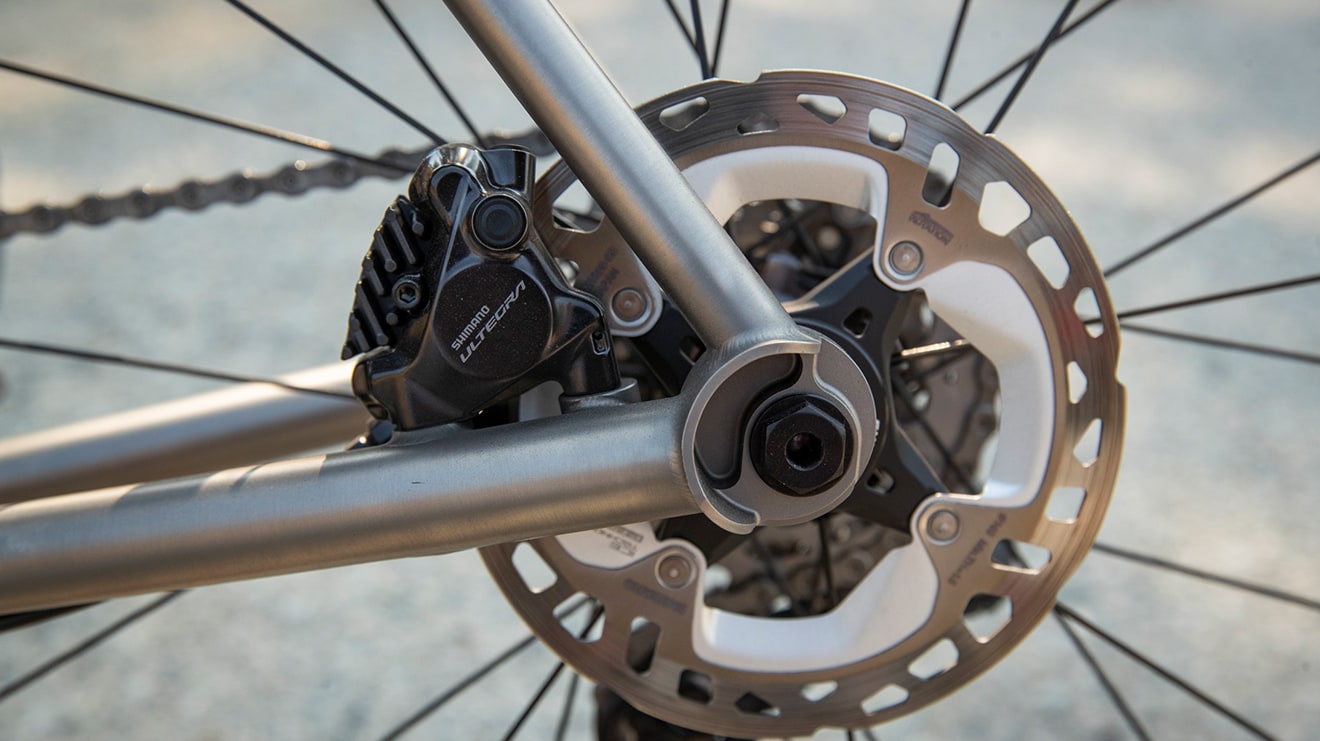

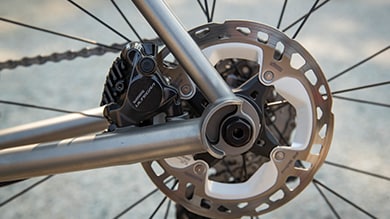

Shimano Ultegra Disc brakes BR-8170
Shimano Ultegra Disc brakes BR-8170

The Latest Rotor Designs

  • DURA-ACE RT-CL900 and ULTEGRA RT-CL800 rotors feature reinforced arms to resist deformation.
  • Center Lock mounting improves stiffness and reliability.
  • Even the heat-dissipating black paint helps keep rotors cooler on long descents.

Pad Options for Every Rider

  • Resin pads: Quiet, smooth, and ideal for dry conditions with improved modulation.
  • Metal pads: Built tough for wet, muddy, or gritty rides with maximum durability.

Eco-Friendly Mineral Oil

All SHIMANO hydraulic systems utilize non-toxic mineral oil, which is more environmentally friendly, safer for mechanics, and gentler on your frame's paint compared to DOT fluids.

Quieter, Cleaner, and Smarter Brake Systems

The latest DURA-ACE and ULTEGRA calipers feature 10% more pad clearance than the previous generations. This reduces pad rub, cuts noise, and ensures consistent braking, even in mud or grit.

Rotor Sizing Options

Fine-tune your ride with SHIMANO’s range of rotor sizes:

  • 140 mm – Lightweight option for climbers or riders on less demanding descents.
  • 160 mm – Maximum stopping power and heat management for steep, technical terrain.
  • Mixed setup – 160 mm front + 140 mm rear balances power and weight savings.

Adjustable Lever Reach

Both DURA-ACE and ULTEGRA levers include reach adjust screws, letting you customize lever position for hand size, handlebar shape, or riding preference. Small change, big comfort boost.

Easy Maintenance, Long-Term Reliability

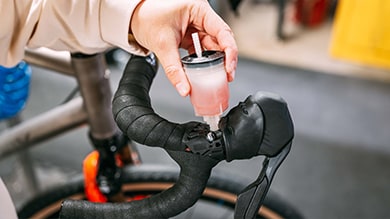

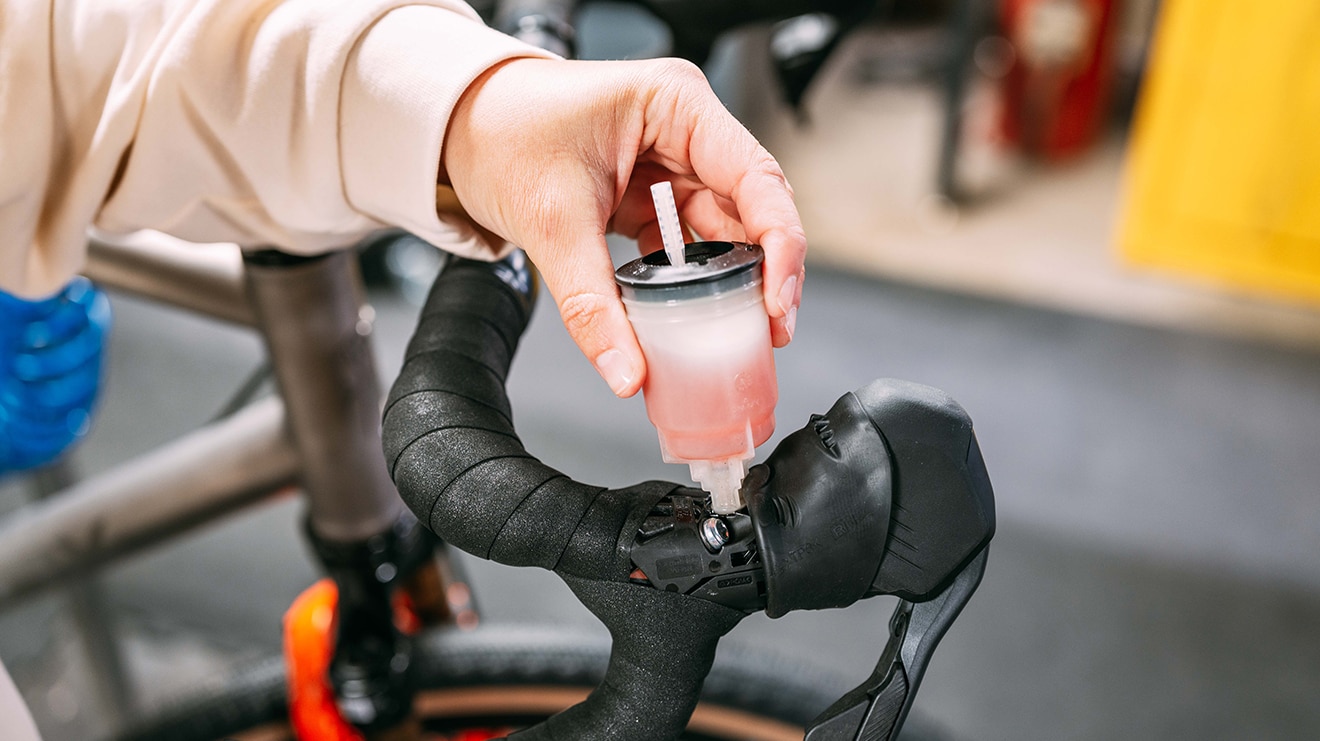

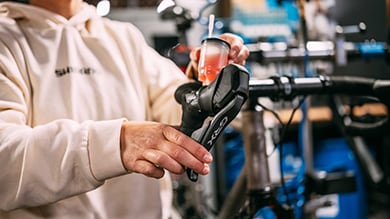

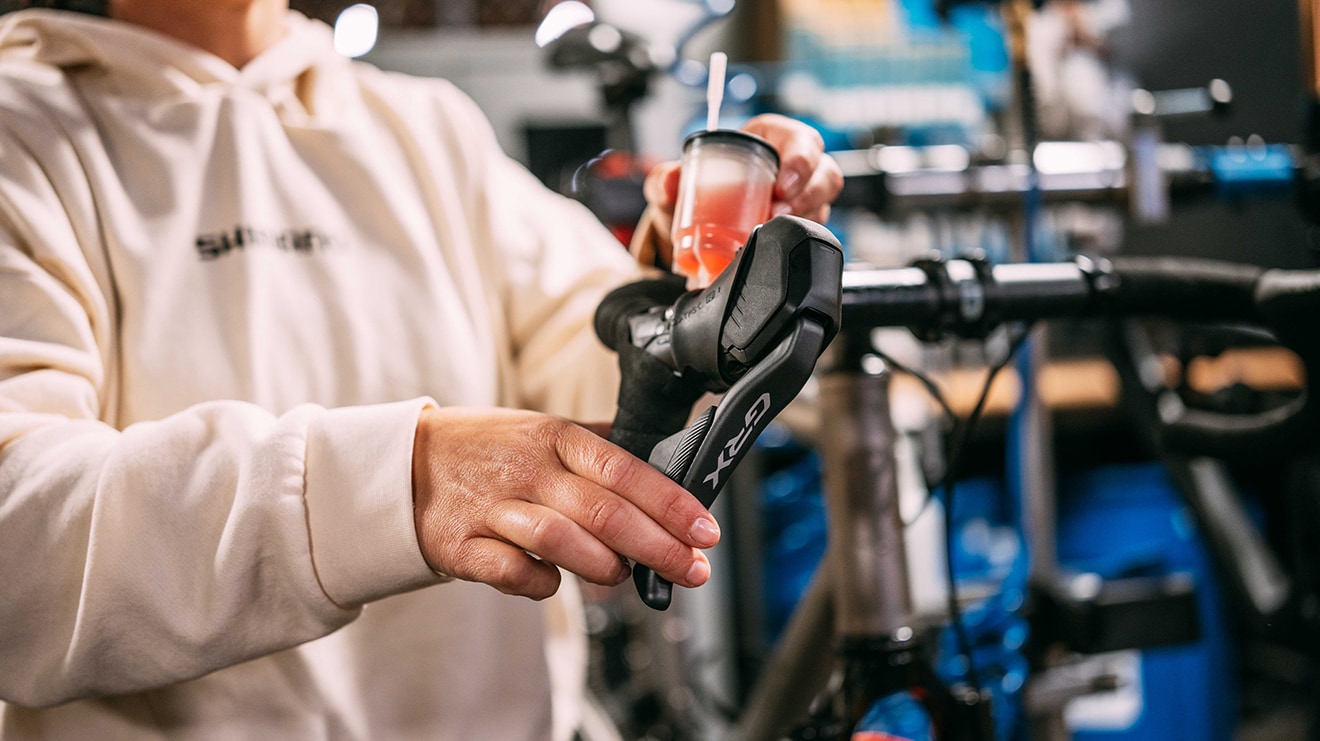

Brake performance depends on clean, well-bled lines. SHIMANO makes this easy with its bleed kit that features taller cups, removable lids, and a plunger clip to simplify home maintenance. Annual brake bleeds, whether you perform them yourself or take your bike to a local shop, will help keep your brakes feeling fresh and powerful. Take care of your SHIMANO hydraulic brakes, and they’ll deliver rock-solid reliability season after season.

The Bottom Line

SHIMANO hydraulic disc brakes are trusted by pros and weekend warriors alike because they deliver reliable performance with less hassle year after year. From ICE TECHNOLOGIES heat management to eco-friendly mineral oil, wide pad clearance, and easy maintenance, SHIMANO continues to lead the way in braking performance.

Whether you’re racing, bikepacking, or just descending your favorite local climb, SHIMANO hydraulic brakes give you the confidence to push harder, ride faster, and stop on a dime.
